Extras
Accessories
Each extra with what it does, the gates it suits and its list price.
- A traffic light needs the relay module; the planner adds it.
- RFID cards work with the keypad and card reader.
- The floor loop needs the loop detector, which runs on 220 V.
- The VOLT GATE no-break suits Jetflex and Brushless motors only; it takes two 12 V batteries (not included).
- The battery module suits the residential Brushless kits only (DZ RIO 800 and DZ CUBE 850 Brushless); it takes one 12 V battery.
Opening
| Item | What it does | For | List price |
|---|---|---|---|
| Extra remote control ZAP 2 | Two buttons, 433.92 MHz. Kits already include two remotes (BR1: one transmitter). | All gates | $ 29.000 |
| Contacto Wi-Fi | Opens the gate from the phone app (Android and iOS) and sends status notifications; needs Wi-Fi at the gate. | All gates | $ 120.250 |
| Wired push-button panel for BR1 | A second 3-button panel for a BR1 rolling door. | Rolling shutter | $ 58.500 |
Safety
| Item | What it does | For | List price |
|---|---|---|---|
| Photocell F32 Compacta (pair) | An infrared beam across the opening stops the gate if a car or person is in the way. Range up to 32 m. | Sliding gate, Swing gate, Tilting door, Garage door, Vehicle barrier | $ 84.500 |
| Emergency stop button | A red stop button beside the gate, often asked for in businesses and condominiums. | All gates | $ 30.550 |
Access
| Item | What it does | For | List price |
|---|---|---|---|

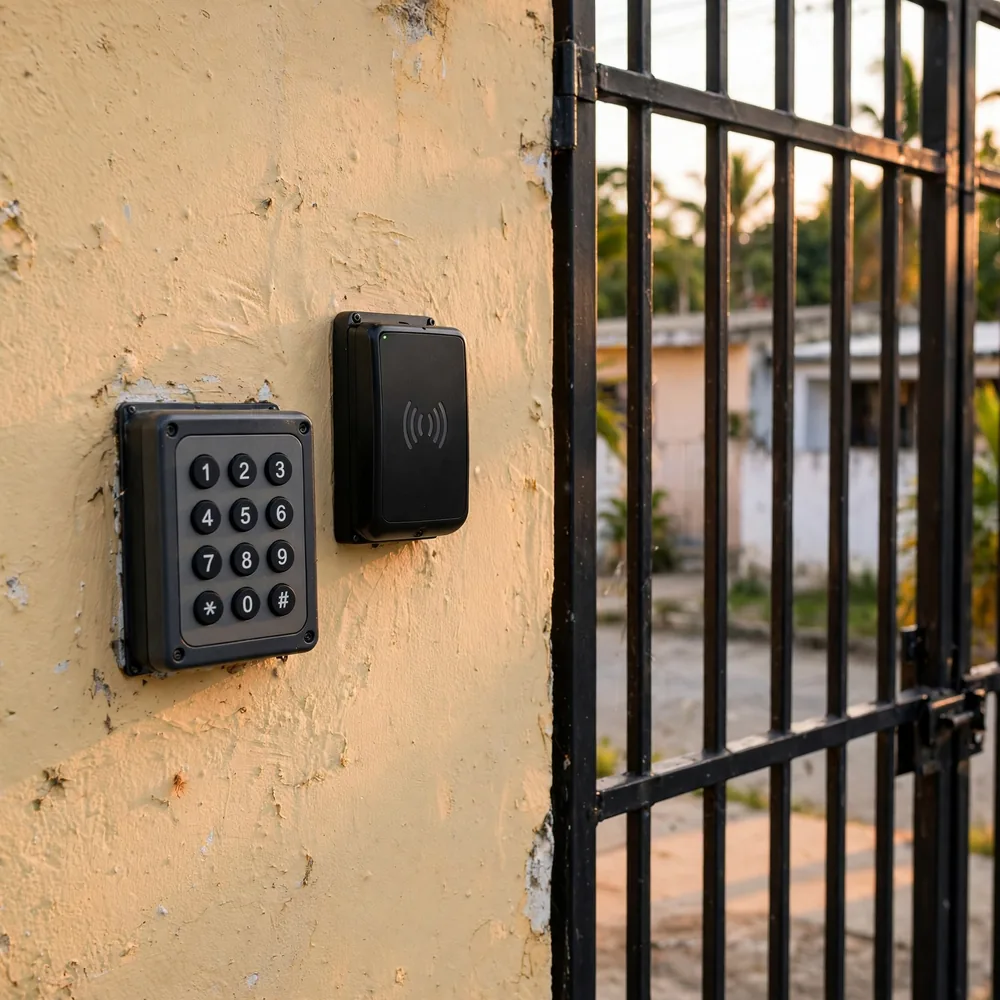

| Keypad and card reader 13 MHz | Stand-alone keypad with a backlight for up to 500 users; also reads 13 MHz cards. | All gates | $ 139.100 |
| RFID card 13 MHz | A card for each resident or employee, used with the keypad and card reader. | All gates | $ 1.950 / card |
| Traffic light CE | Shows drivers when to pass. Needs the relay module. | All gates | $ 89.700 |
| Relay module | Connects a traffic light or an electric lock to the PPA control board. | All gates | $ 24.700 |
| Loop detector, 2 channels (220 V) | Senses a vehicle over a cable loop in the floor, so a barrier or gate does not close on it. | Sliding gate, Vehicle barrier | $ 445.250 |
| Inductive floor loop 1.90 × 0.80 m | The cable loop laid under asphalt or concrete; one per lane. | Sliding gate, Vehicle barrier | $ 120.250 |
Power
| Item | What it does | For | List price |
|---|---|---|---|
| No-break VOLT GATE | Keeps a Jetflex or Brushless motor working in a power cut. Not for monofásico (analogue) motors. Battery not included. | All gates | $ 899.000 |
| Battery module | Backup for the residential Brushless kits (DZ RIO 800 and DZ CUBE 850 Brushless); not for industrial Brushless. Battery not included. | All gates | $ 429.000 |
| Battery 12 V 7.5 Ah | For the no-break (two) or the battery module (one). | All gates | $ 57.200 |
| Surge protector 127/220 V | Protects the control board from surges caused by lightning or switching. | All gates | $ 29.250 |
Mounting
| Item | What it does | For | List price |
|---|---|---|---|
| Flex base for sliding motors | Adjustable steel base (80–150 mm) instead of a concrete plinth; good on uneven floors. | Sliding gate | $ 65.000 |
Plan it before the visit
Describe the gate, see the PPA kits whose published limits cover it, add the extras and send the plan to PPA HOME on WhatsApp or by email.
